DD422iE
Development drill rigs
DD422iE
- Coverage
- 60 m²
- Hole length
- 3.44 - 5.88 m
- Tramming type and distance
- BEV - 6.0 km @ 6 km/h in 1:7 incline

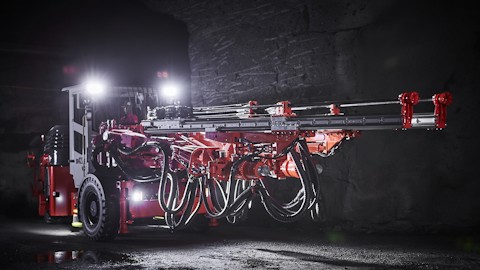

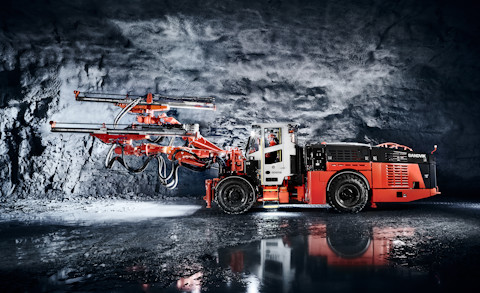

Sandvik DD422iE Dual Controls is a battery-powered mining jumbo designed to remove emissions while tramming. It allows true multipurpose usage of the drill, improving fleet optimization, versatility and performance. It can be used across multiple applications: face drilling, bolt hole drilling and bolting.
Features
-
Intelligent power management system
Charging While Drilling technology enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available. Additional electric power for drilling can be drawn from the onboard battery pack, increasing drilling productivity without compromising the maximum peak power load taken from mine electrics.
Intelligent power management system
Charging While Drilling technology enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available. Additional electric power for drilling can be drawn from the onboard battery pack, increasing drilling productivity without compromising the maximum peak power load taken from mine electrics.
Charging While Drilling technology enables battery charging to be carried out during normal drilling cycles to ensure maximum tramming energy is available. Additional electric power for drilling can be drawn from the onboard battery pack, increasing drilling productivity without compromising the maximum peak power load taken from mine electrics.
-
LFP battery technology
Our onboard LFP battery pack is designed for rigorous mining conditions, offering safety, robustness, reliability, and extended tramming performance.
LFP battery technology
Our onboard LFP battery pack is designed for rigorous mining conditions, offering safety, robustness, reliability, and extended tramming performance.
Our onboard LFP battery pack is designed for rigorous mining conditions, offering safety, robustness, reliability, and extended tramming performance.
-
Dual controls
The dual controls option allows true multipurpose usage of the drill, improving fleet optimization, versatility and performance. DD422iE can be used across multiple applications: face drilling, bolt hole drilling and bolting. The optional pumpable resin system ensures high bolting quality and faster cycle time. This option supports: solid rebar, self-drilling bolt and hollow bar.
Dual controls
The dual controls option allows true multipurpose usage of the drill, improving fleet optimization, versatility and performance. DD422iE can be used across multiple applications: face drilling, bolt hole drilling and bolting. The optional pumpable resin system ensures high bolting quality and faster cycle time. This option supports: solid rebar, self-drilling bolt and hollow bar.
The dual controls option allows true multipurpose usage of the drill, improving fleet optimization, versatility and performance. DD422iE can be used across multiple applications: face drilling, bolt hole drilling and bolting. The optional pumpable resin system ensures high bolting quality and faster cycle time. This option supports: solid rebar, self-drilling bolt and hollow bar.
Learn more about DD422iE features
Digital Driller™
Through simulation, operators develop skills fully from basic boom movements and manual drilling operations using various training scenarios.
Product specifications
Downloads
DD422iE operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
Technical specifications
| Coverage |
60
m²
|
|---|---|
| Hole length |
3.44 - 5.88
m
|
| Tramming type and distance |
BEV - 6.0 km @ 6 km/h in 1:7 incline
|
| Hole diameter |
43 - 64
mm
|
| Number of booms |
2 x SB60i
|
| Coverage |
60
m²
|
|---|---|
| Hole length |
3.44 - 5.88
m
|
| Tramming type and distance |
BEV - 6.0 km @ 6 km/h in 1:7 incline
|
| Hole diameter |
43 - 64
mm
|
| Number of booms |
2 x SB60i
|
| Drift size (H x W) |
4.5 x 4.5
m
|
| Feed length |
Fixed TFi500 12 to 20 ft. or telescopic TFX 6-12 ft. to 10-16 ft.
|
| Rock drill |
RD525 25kW
|
| Voltage |
380 - 1,000
V
(multi voltage)
|
| Controls type |
SICA (Sandvik Intelligent Control System Architecture)
|
| Weight |
29,000
kg
(depending on options)
|
Watch DD422iE in action
Going all in
Related Products and Services
Related upgrades
Access protector for underground drills
Dual drilling controls for DD422i and DD422ie
Grease reel with pump and nozzle for underground drills
PDS interface for underground drills
Water hose reel for underground drills
Access detector for underground drills
Additional by-pass filter for underground drills
Air mist flushing for underground drills
Automatic greasing system for underground drills
Cameras system for underground drills
Doors and seat belt interlock for underground drills
Electrically activated safety grill for underground drills
High pressure cleaner for underground drills
Power extractor for underground drills
Pumpable Resin System for Dual Controls development drills
Telescopic feed conversion for development drills
TRR1 rod retainer for development drills
TRS two rods system for development drills
Electrification
More productive, powerful and better for workers' health
"Every mine has a capital purchase or a maintenance replacement coming up in the next few years, and they would be missing out if they decided not to investigate or pursue battery-electric technology." Jeff LaMarsh, Mine Superintendent, New Afton
Our range of development drill rigs
DD423i
- Coverage
- 81 m²
- Hole length
- 3.44 - 5.88 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - QSB4.5 (127 kW Tier 3 Stage IIIA)
DD322i
- Coverage
- 58 m²
- Hole length
- 3.44 - 5.27 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD3.6 (100 kW, Tier 3, Stage IIIA) or optional TCD3.6 (105 kW, Tier 4F, Stage V)
DD312i
- Coverage
- 48 m²
- Hole length
- 2.83 - 5.27 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD3.6 (100 kW, Tier 3, Stage III, MSHA, CANmet)
DD2710
- Coverage
- 34 m²
- Hole length
- 2.83 - 4.66 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD3.6 L4EDG (74 kW, China IV) Hydrostatic transmission - Diesel engine - TCD3.6 (74 kW, Tier 4F, Stage V)
DD210
- Coverage
- 24 m²
- Hole length
- 2.83 - 3.44 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - D914L04 (52 kW, Tier3, CANMET)
DD211L-V
- Coverage
- 25 m²
- Hole length
- Up to 2.1 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74 kW, Tier 2)
DD422i
- Coverage
- 60 m²
- Hole length
- 3.44 - 5.88 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - QSB4.5 (127 kW Tier 3 Stage IIIA )
DD311
- Coverage
- 40 m²
- Hole length
- 3.44 - 4.66 m
- Tramming type and distance
- Hydrodynamic transmission - Diesel engine - OM904LA (110 kW, Tier 3, Stage IIIA) Hydrostatic transmission - Diesel engine - TCD2.2 (55 kW, Tier 4F, Stage V)
DD321
- Coverage
- 49 m²
- Hole length
- 3.44 - 4.66 m
- Tramming type and distance
- Hydrodynamic transmission - Diesel engine – QSB 4.5 (124 kW, Stage IIIA)
DD321
- Coverage
- 41 m²
- Hole length
- 3.44 - 4.66 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - QSB 4.5 (124 kW, Stage IIIA) Hydrostatic transmission - Diesel engine - TCD2.2 (55 kW, Tier 4F, Stage V)
DD311
- Coverage
- 40 m²
- Hole length
- 3.44 - 4.66 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD2012 (74 kW, Tier 3, Stage IIIA, Canmet, China 2) Hydrostatic transmission - Diesel engine - TCD3.6 (74 kW, Tier 4F, Stage V)
DD212i
- Coverage
- 26 m²
- Hole length
- 2.83 - 4.05 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - TCD2.2 (55 kW, Stage III) or optional TCD2.2 EMR (55 kW, Tier 4F, Stage V)
DD212
- Coverage
- 25 m²
- Hole length
- 2.83 - 3.44 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - D914L04 (55 kW, Tier 4i, Stage IIIA, MSHA) Hydrostatic transmission - Diesel engine - TCD2.2 (55 kW, Tier 4F, Stage V)
DD211L
- Coverage
- 36 m²
- Hole length
- Up to 4.7 m
- Tramming type and distance
- Hydrostatic transmission - Diesel engine - BF4M2012 (74 kW, Tier 2)
