Diesel loaders
Toro® LH515i
- Dimensions (LxWxH)
- 10,800x2,800x2,900 mm
- Capacity
- 15,000 kg
- Bucket range
- 6.3 - 7.5 m³

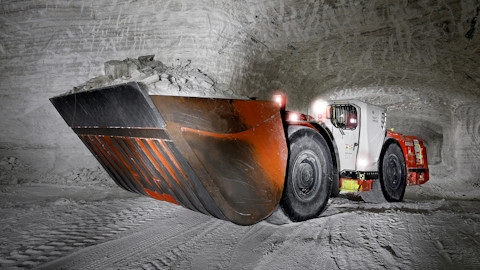

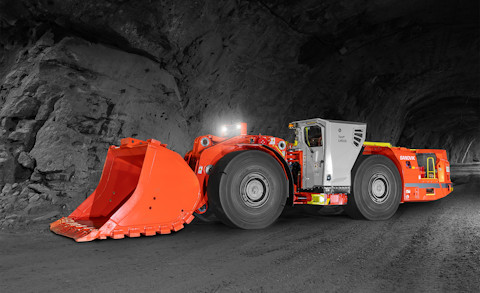

Toro® LH515i loader is a compact 15-tonne underground loader. The design combines intelligence and simplicity, and features such as Sandvik Intelligent Control System, easy maintenance access and ground-level maintenance points that maximize productivity and minimize downtime.
Features
-
High payload capacity
Toro® LH515i loader has a payload capacity of 15,000 kg. Despite its high capacity, the compact underground loader can easily navigate tunnel widths up to 5 x 5 m, increasing productivity.
-
Intelligent control system
Sandvik Intelligent Control System allows for easy diagnostics and access to data. It enables multiple digital solutions, including AutoMine® mining automation system.
-
Premium cabin ergonomics
Operator comfort is prioritized. A specially designed footwell gives more leg room and diagnostics all appear on a 12” touch screen color display. The frame, bucket location and ride control option bring enhanced comfort and stability while tramming.
Product specifications
LH515i operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Dimensions (LxWxH)
- 10,800x2,800x2,900 mm
- Capacity
- 15,000 kg
- Bucket range
- 6.3 - 7.5 m³
- Break out force, lift
- 28,100 kg
- Break out force, tilt
- 24,500 kg
- Operating weight *
- 39,600 kg
- Maximum driving speed (Level / loaded)
- 28.2 km/h
*Unit weight is dependent on the selected options
