Diesel loaders
Toro® LH514
- Dimensions (LxWxH)
- 11,000x3,000x3,000 mm
- Capacity
- 14,000 kg
- Bucket range
- 4.6 - 7.0 m³

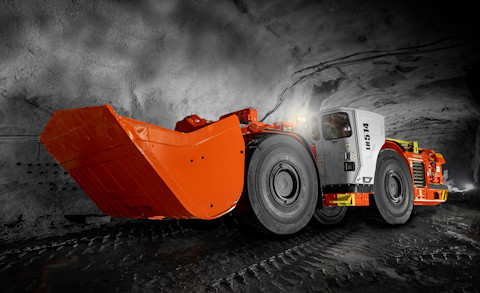

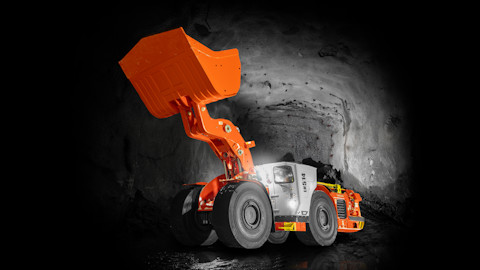

Toro® LH514 is a proven and compact underground loader. With a 14-tonne capacity, excellent operator ergonomics and high productivity, it ensures cost-effective loading per tonne.
Features
-
High tramming speeds
Toro® LH514, with its 14,000 kg payload capacity and high power-to-weight ratio, provides high tramming speeds for shorter cycle times and high productivity.
-
Easy to navigate
A small envelope size and turning radius make the loader easy to maneuver and navigate in compact spaces, further enhancing its versatility.
-
Safety and operator comfort
This underground loader is available with a robust ROPS- and FOPS-certified open canopy or closed cabin. The operator’s compartment is designed to be ergonomic and comfortable for long working shifts.
Product specifications
LH514 operating manual and spare parts
Operating manuals and spare parts can be found on the My Sandvik customer portal.
- Dimensions (LxWxH)
- 11,000x3,000x3,000 mm
- Capacity
- 14,000 kg
- Bucket range
- 4.6 - 7.0 m³
- Break out force, lift
- 28,042 kg
- Break out force, tilt
- 23,453 kg
- Operating weight *
- 38,100 kg
- Maximum driving speed (Level / loaded)
- 32.7 km/h
*Unit weight is dependent on the selected options
